MAGNETIX MGN4 – Battery-Powered 42V AC Yoke Kit
Suggested Price : Complete kit From 2690 € Excl. VAT
🛈 Prices may vary depending on configuration, location, and distributor policy. Please contact us or your local representative for an exact quote.
Non-contractual photo
MAGNETIX MGN4 is Flying Vision’s next-generation battery-powered 42 VAC AC yoke kit, designed for demanding magnetic particle inspections in the field.
Built around the new MAGNETIX YOKE architecture, it combines high magnetic performance, advanced electronic control, and enhanced overall reliability in a safer low-voltage platform.
MAGNETIX MGN4 – Battery-Powered 42 V AC Yoke Kit
- 42 VAC low-voltage architecture
- Battery-powered AC magnetization
- Strong tangential field
- New-generation MAGNETIX YOKE
- Embedded MCU control system

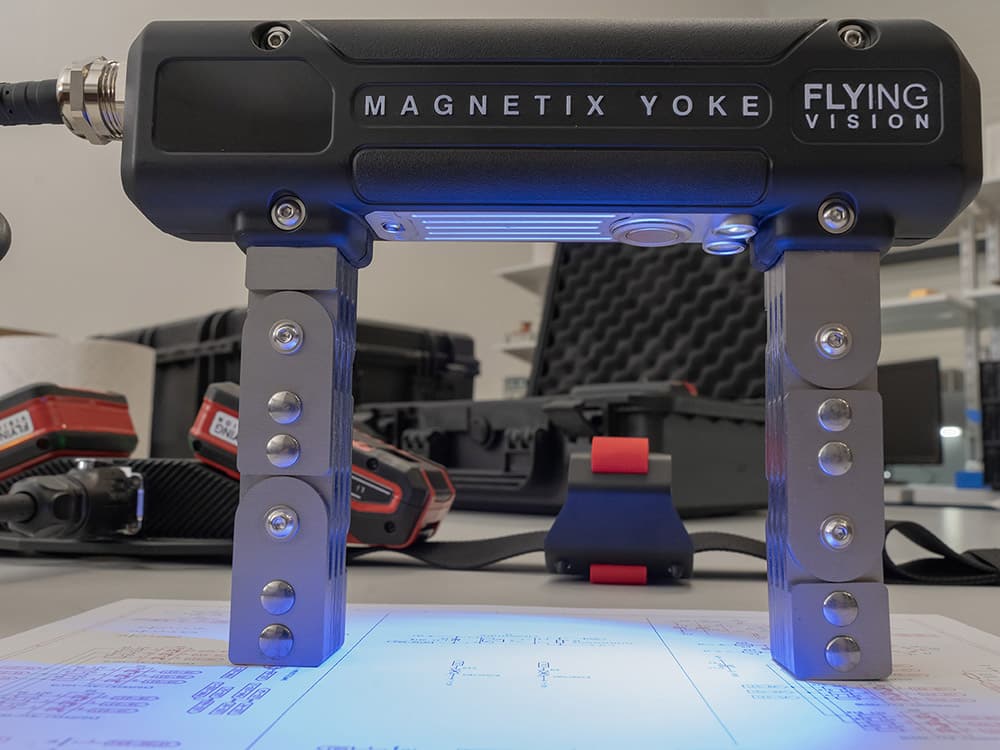

- Optional integrated UVW light

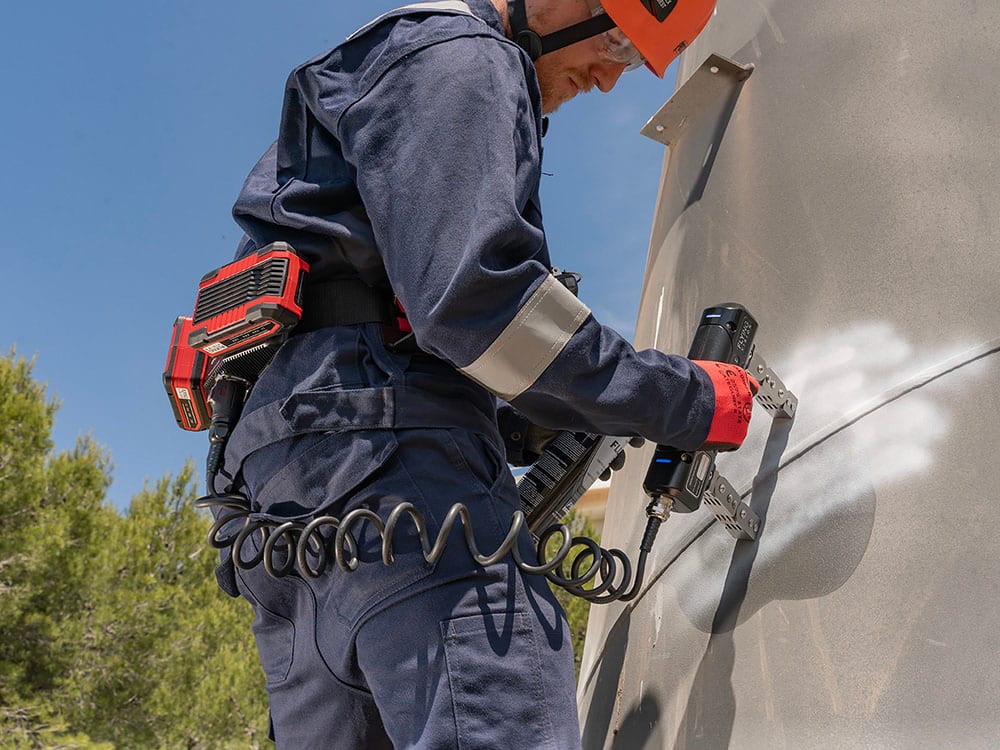

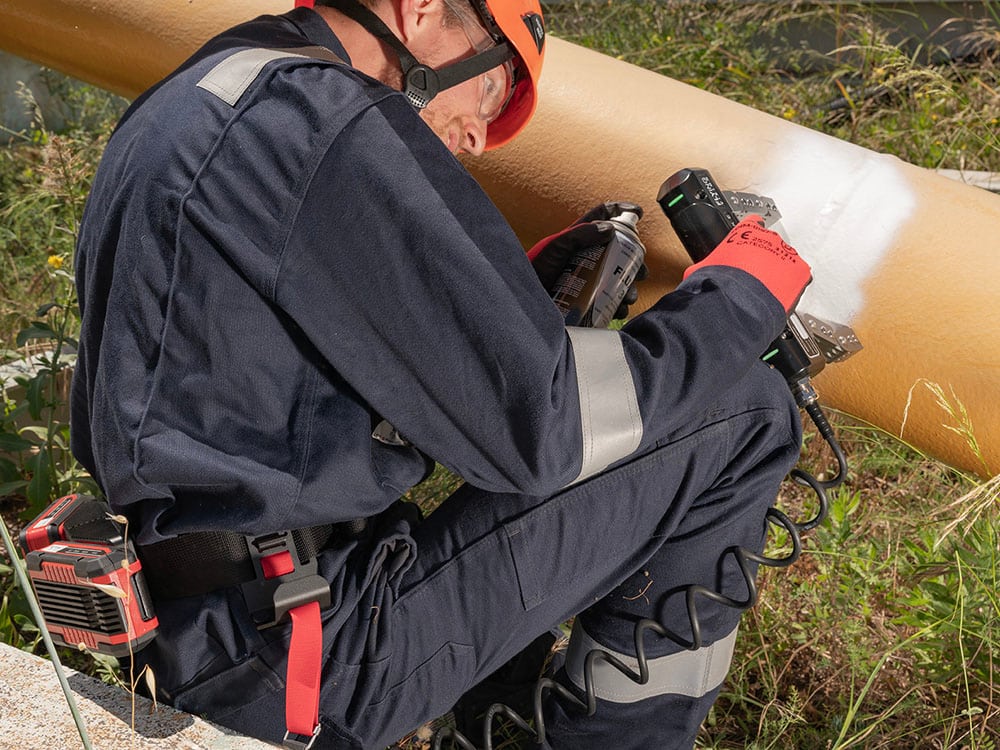

PRESENTATION ET APPLICATIONS
MAGNETIX MGN4 is Flying Vision’s new-generation battery-powered 42 VAC AC yoke kit, designed for demanding magnetic particle inspections in the field.
Built around the new MAGNETIX YOKE and an advanced MCU-controlled power system, it combines high magnetic performance, true AC magnetization, and safe low-voltage operation in a compact solution developed for professional magnetic particle inspection in harsh industrial environments.
- Strong magnetic performance
- Safe low-voltage operation
- Improved overall reliability
- True battery-powered AC magnetization
- Compact and fully portable design
- Professional MPI performance for intensive field use

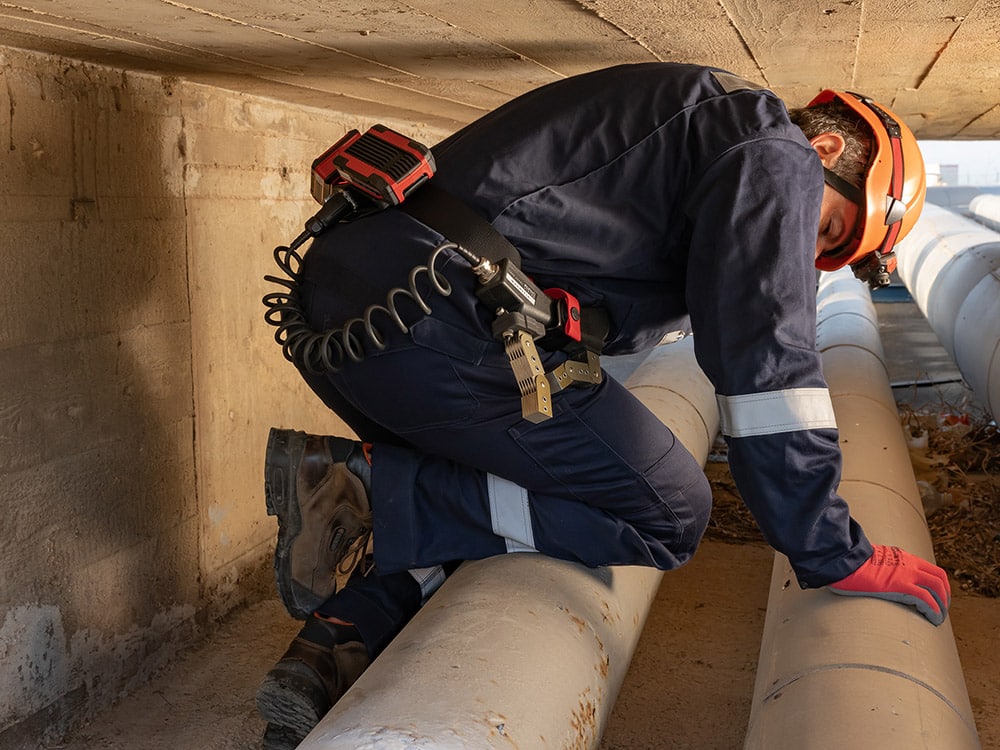

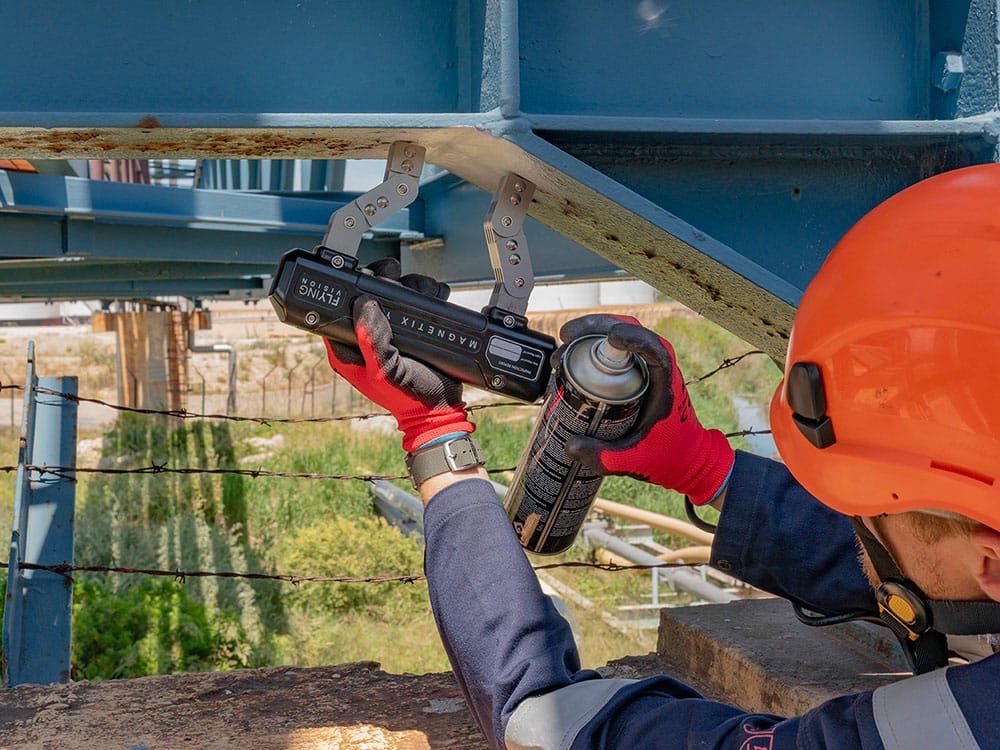

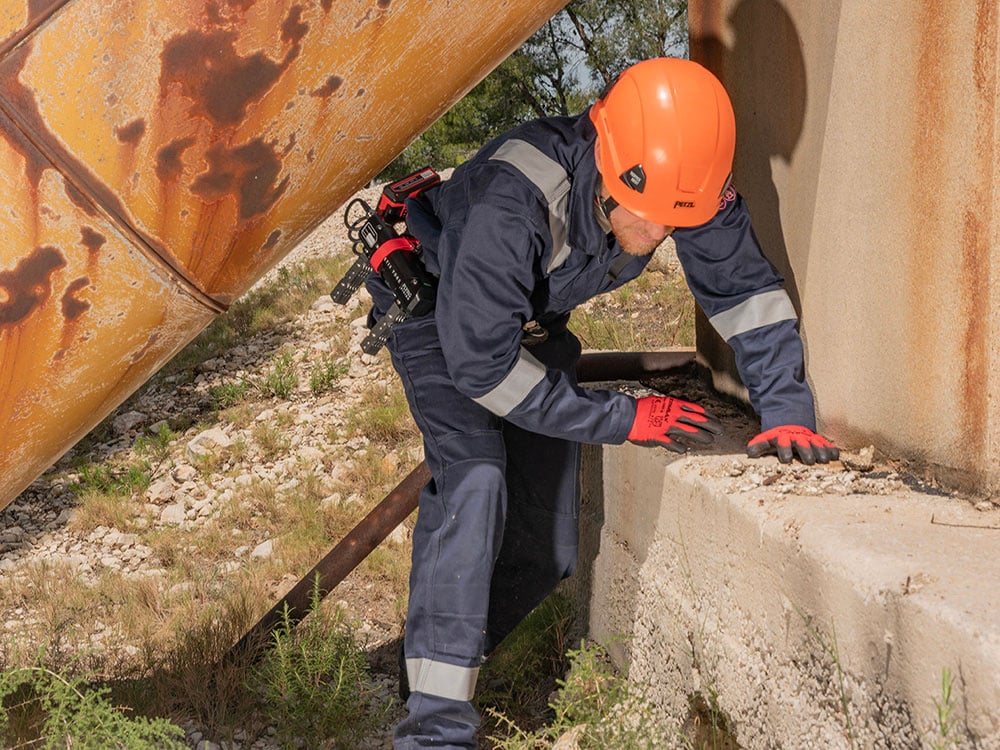

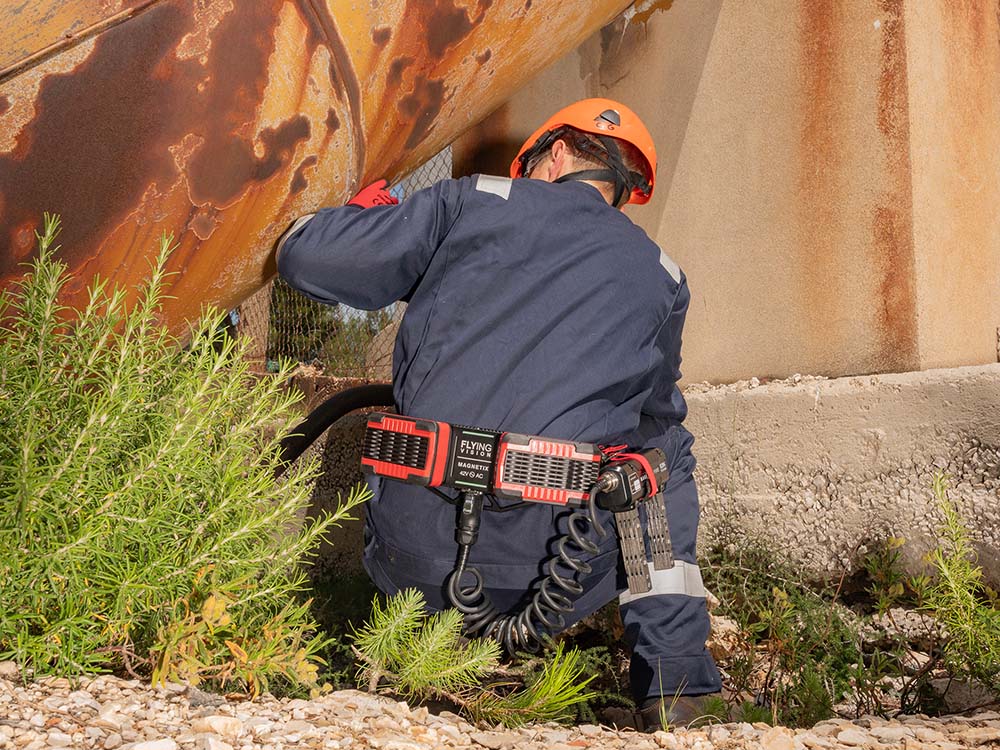

MGN4 is particularly suited to inspections in confined spaces, during rope access work, on steel structures, piping racks, scaffolding, and other difficult-access areas where mobility and operator safety are critical.

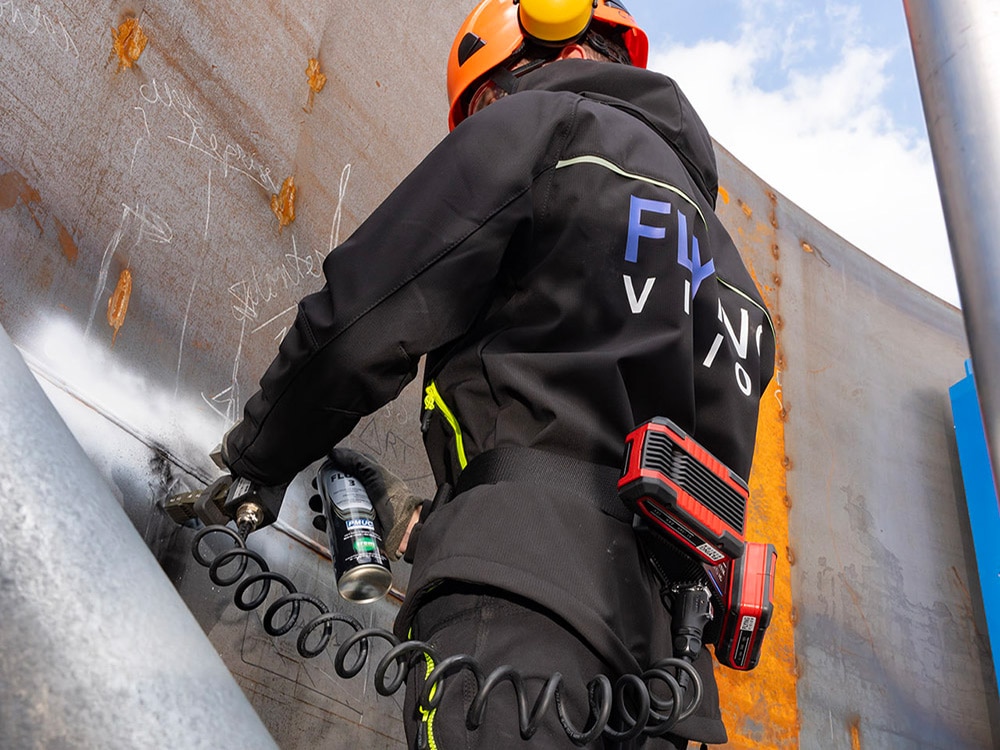

Its belt-mounted architecture, compact design, and battery-powered AC operation make it well suited to field magnetic particle inspection where freedom of movement, safe handling, and reliable performance are essential for demanding on-site inspections and maintenance operations.
- Greater freedom of movement
- No mains power cord constraints
- Easier access in restricted areas
- Improved portability for field work
- Reliable performance in harsh environments
- A practical solution for demanding on-site MPI inspections
FEATURES
Portable Inspection System
- Belt-mounted power system
- Full field mobility
- No mains power cord
High Magnetic Performance
- Strong tangential field
- Stable magnetic output and
- Constant lifting capacity regardless
of battery level

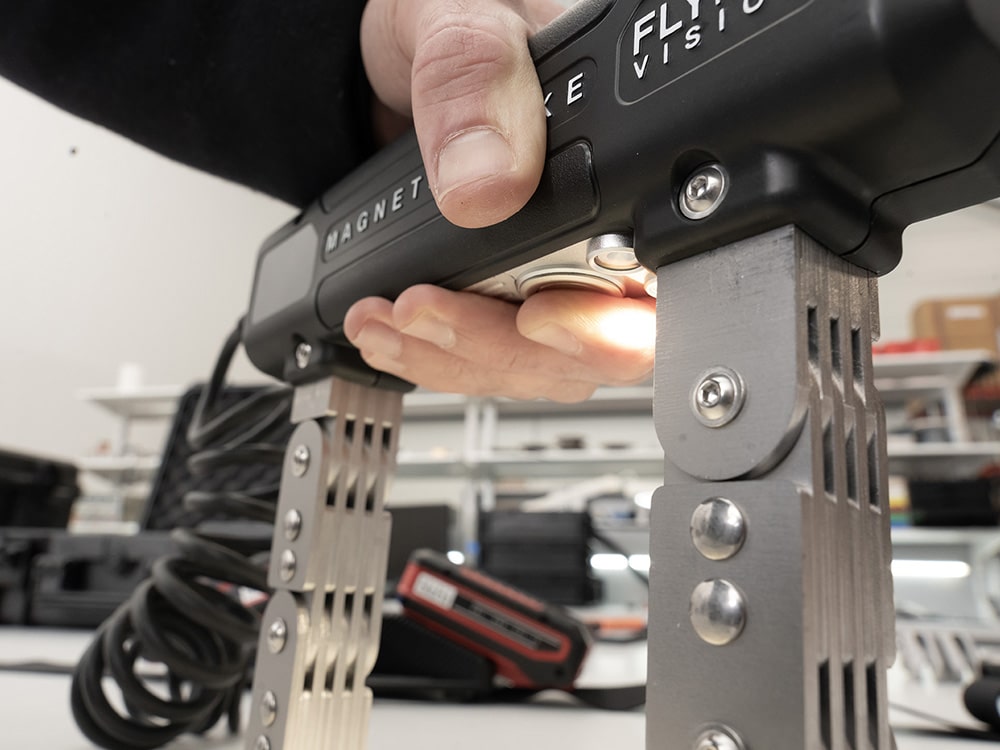

New MAGNETIX YOKE Platform
- New heavy-duty yoke design
- Real-time system monitoring
- Optional integrated UVW light
Safe 42 VAC Architecture
- 42 VAC low-voltage output
- Enhanced operator safety
- Enhanced safety in metallic
environments
MCU Electronic Control
- Voltage and current controlled
- Automatic low-battery shutdown
- Short-circuit battery protection
Improved Autonomy
- High-efficiency yoke design
- Excellent power-to-field ratio
- 4 to 8 h operating time*
* see FAQ How long can the MGN4 run?

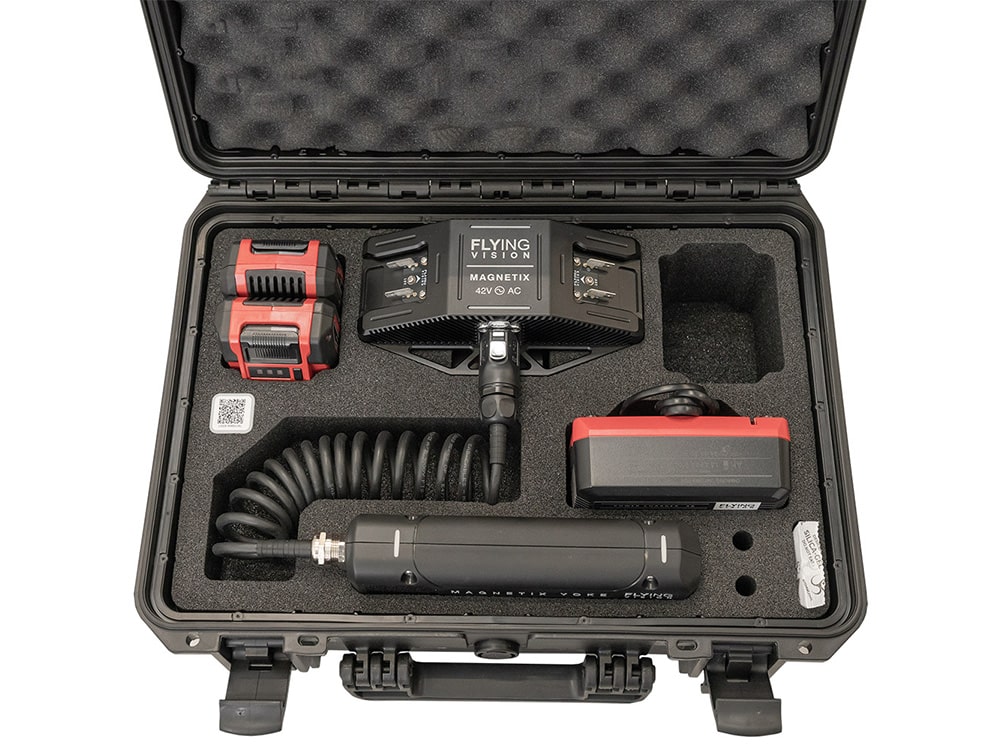

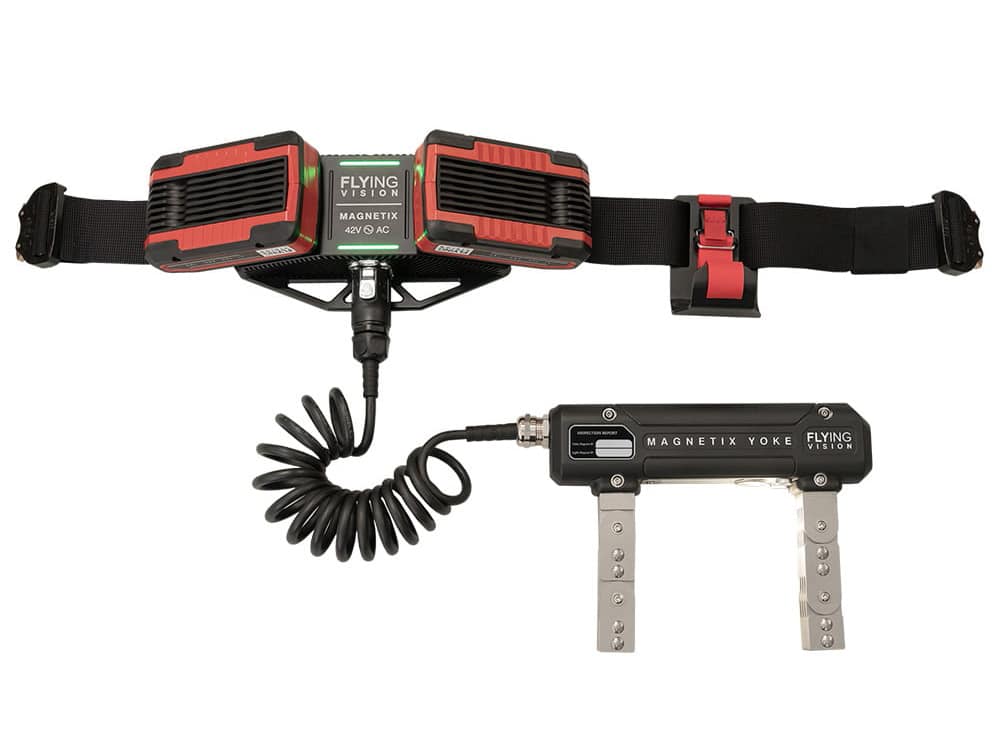

KIT CONTENT & AVAILABLE VERSIONS

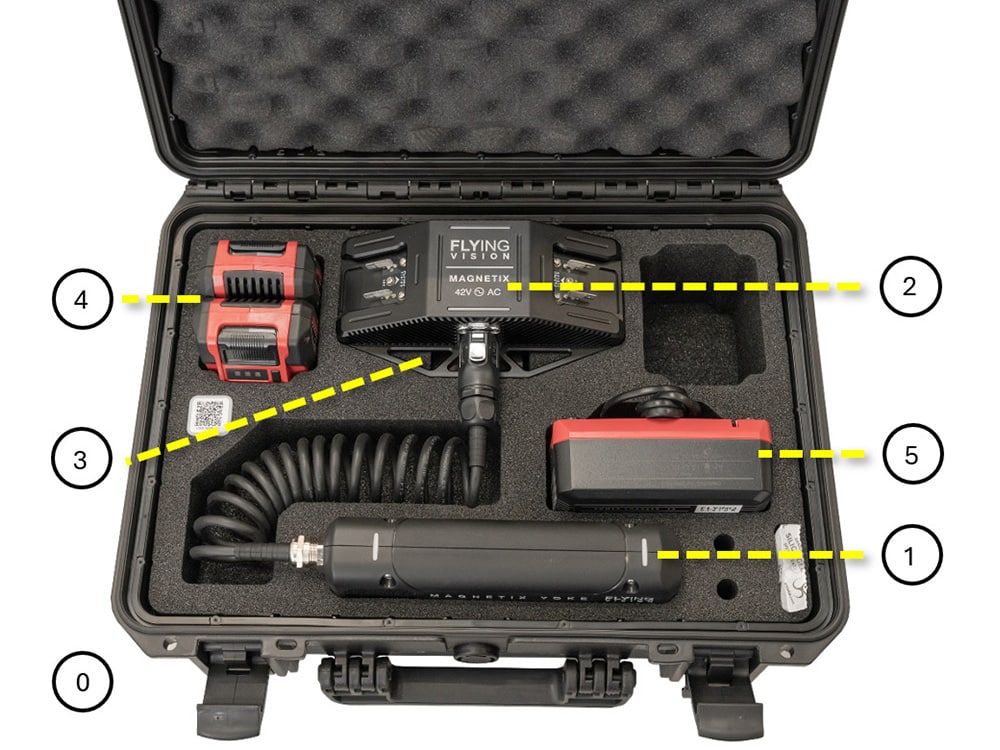

Main kit components
0 MGN-BP-MGN4US-1
Transport case
1 MGN-EY-42-x
42V AC MAGNETIX YOKE
2 MGN4-A100

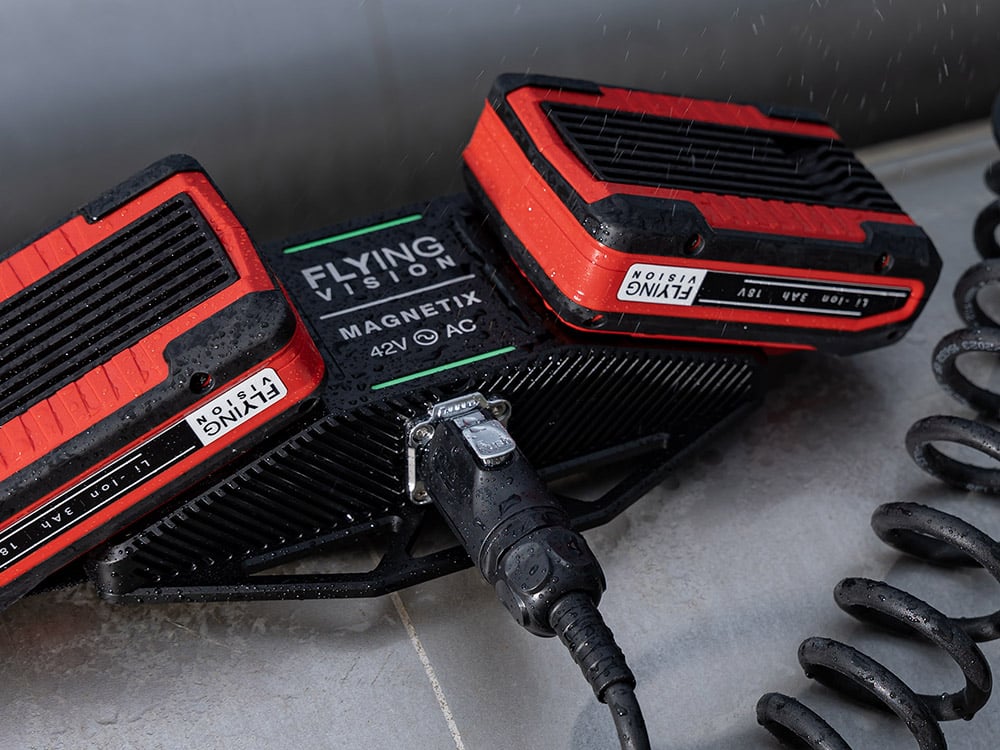

42V AC (DC/AC) Power driver
3 MGN4-A300
Belt
4 Battery set
2 x batteries
5 Battery charger
1 x Single battery charger
Kit references
EU Kit Versions / Einhell battery system :
MGN-BP-MGN4EU-1
MAGNETIX MGN4 EU Version – Standard Magnetix Yoke – Including one set of batteries and a single charger
MGN-BP-MGN4EU-2
MAGNETIX MGN4 EU Version – Magnetix Yoke with UVW Light – Including one set of
batteries and a single charger
MGN-BP-MGN4EU-3
MAGNETIX MGN4 EU Version – Standard Magnetix Yoke – without battery / charger
MGN-BP-MGN4EU-4
MAGNETIX MGN4 EU Version – Magnetix Yoke with UVW Light – without battery / charge
American Kit Versions / Dewalt battery system :
MGN-BP-MGN4US-1
MAGNETIX MGN4 US Version – Standard Magnetix Yoke – without battery / charger
MGN-BP-MGN4US-2
MAGNETIX MGN4 US Version – Magnetix Yoke with UVW Light – without battery / charger

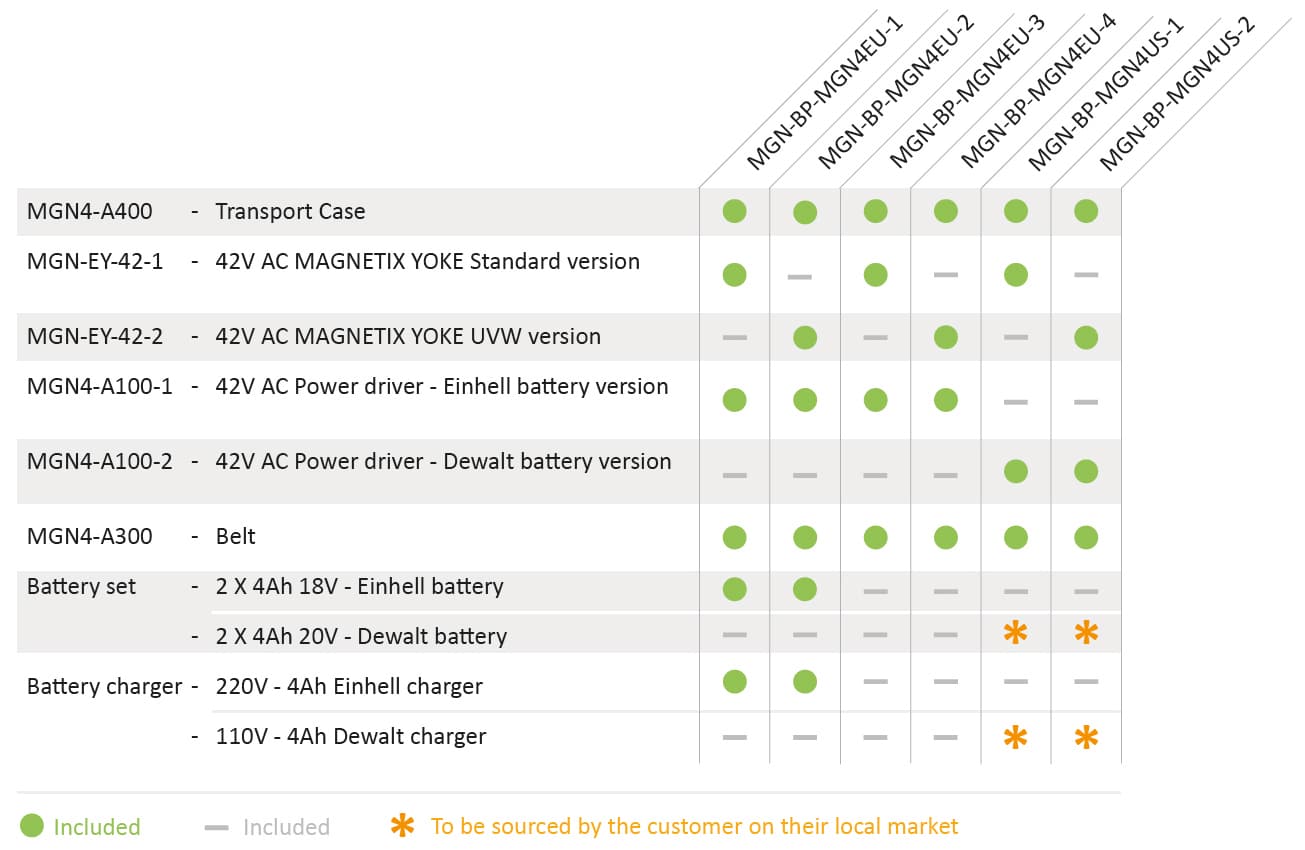

Included items by kit reference
TECHNICAL DATA
Technical characteristics
Details
Working Voltage
42V AC 50/60HZ
Input Voltage
Input Voltage 18V DC
Battery pack capacity
2 x 4Ah
Charging time for battery pack (2 batteries)
Dual charger: 1 h – Single charger: 2 h
Duty Cycle
50%
Autonomy for standard field use ( 25% of Duty Cycle )
Up to 8 hours
Autonomy for intensive field use ( 50% of Duty Cycle )
Up to 4 hours
PullForce / Lifting Capacity
> 4.54 Kg / 10Lb with pole gap of 11cm
Tangential magnetic field
> 2000 A/m at 15,5cm*
Pole section
25 x 25 mm (6,25 cm²)
Protection Rating IP
IP54-equivalent protection
Total weight (excluding case)
5Kg
Certifications
CE, UKCA
*Indicative value only, depending on the configuration and the material being inspected.
FAQ
What makes the MGN4 different?
The MGN4 is a next-generation battery-powered AC yoke kit built around the new MAGNETIX YOKE platform. Its key differentiators are true AC magnetization, 42 VAC low-voltage operation, stable magnetic output and lifting capacity regardless of battery level, and a compact belt-mounted system suited to demanding field work, including confined spaces and difficult-access inspections.
Is the MGN4 a true AC yoke?
Yes. The MGN4 is a battery-powered AC yoke operating at 42 VAC, 50/60 Hz. This is important because many portable yokes on the market are DC systems, while the MGN4 is designed to provide true AC magnetization in a fully portable field system.
Why use 42 VAC?
42 VAC combines AC magnetization with a low-voltage architecture better suited to demanding field inspections. It helps improve operator safety while maintaining the mobility and performance required for work in metallic environments, confined spaces, and other difficult-access areas.
Does battery level affect performance?
No. The MGN4 is designed so that magnetic output and lifting capacity remain stable regardless of battery level. Its electronics control both voltage and current to
help maintain consistent inspection performance throughout battery discharge.
How long can the MGN4 run?
The MGN4 can typically operate from around 4 to 8 hours, depending on inspection conditions, operator working pace, and the time required to move between inspection points. On refinery or process-unit jobs, longer access times between welds often extend operating time, while workshop inspections or construction jobs with fast access to successive welds usually increase effective usage and reduce overall run time. As a general guide, the MGN4 can operate up to 8 hours in standard field use at 25% duty cycle and up to 4 hours in intensive use at 50% duty cycle.

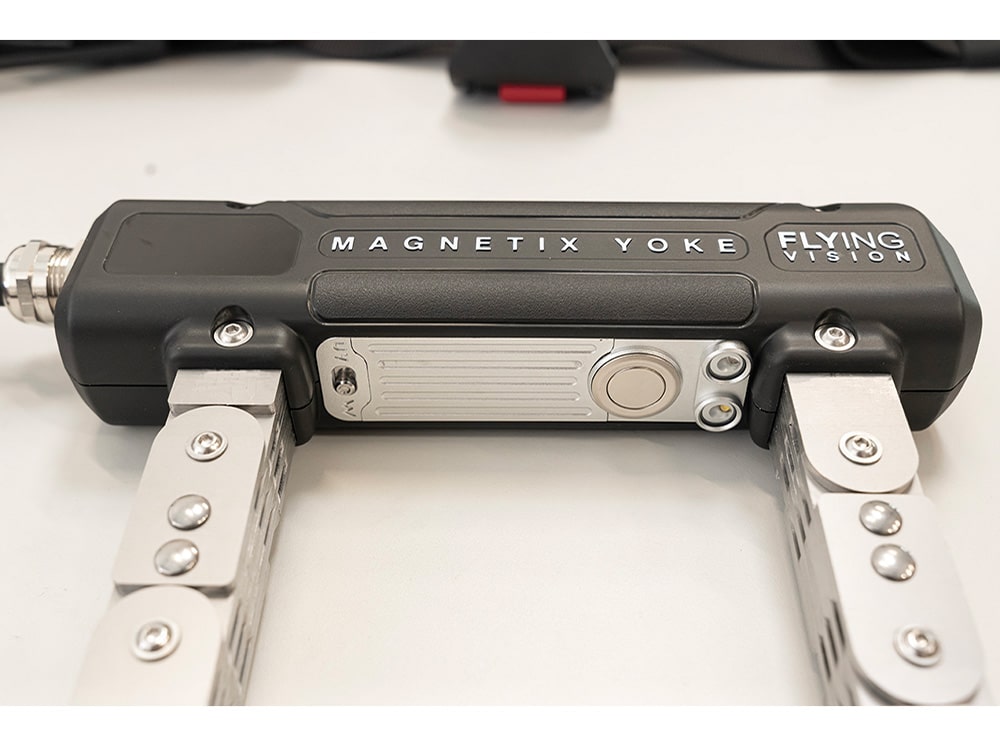

Is integrated UV and white light available?
Yes. The MGN4 is available with an optional integrated lighting module combining UV-A and white light for visible and fluorescent MPI inspections. This provides a
compact integrated solution without the need for a separate external inspection lamp.
