Visual inspection robot
Non-contractual photo
Explore the unexplored and inspect the inaccessible with the VIR-1, the game-changing mini robot in demanding industrial environments.
Step into a new era of visual inspection and exploration with the VIR-1, a cutting-edge robot that combines innovative technology and geometry to access the most inaccessible areas of the naval, petrochemical, and other industries. With its compact size, autonomy, and ability to move on ferromagnetic surfaces, the VIR-1 revolutionizes inspection and exploration in challenging environments.
Context and field of application
The VIR-1 is a mini remotely operated robot specifically designed for visual inspections and exploration in challenging industrial environments. With its innovative technology, wireless control system, and HD video feedback, it is capable of traversing vertical ferromagnetic metal walls, enabling visual inspections and exploration of previously inaccessible areas. Some of the application areas include:
- Boat and submarine hulls: inspection of internal and external hulls, verification of pressurized equipment and pipelines.
- Petrochemical industry: inspection of tanks, spheres, and storage tanks.
- Energy industry: inspection of metal structures and components in power plants and nuclear facilities.
- Shipbuilding: inspection of bilges, watertight compartments, and internal structures.
The VIR-1 offers great versatility with its compact size and wireless autonomy, allowing for visual inspections and exploration of environments that were previously impossible to reach.

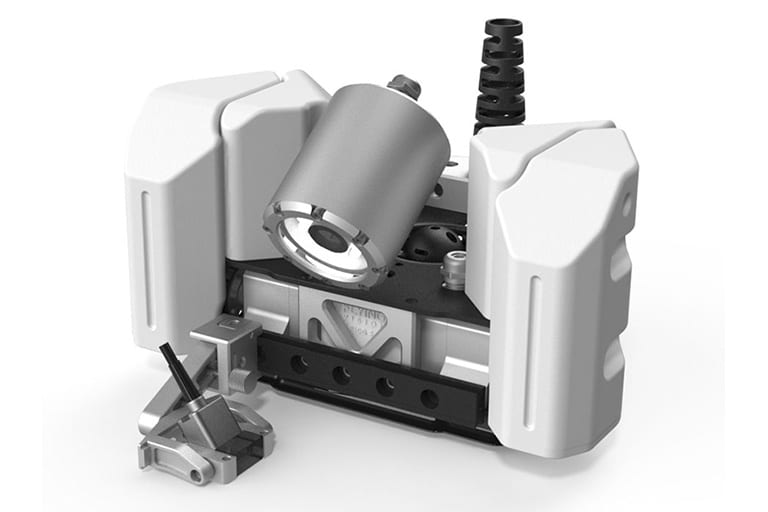

Nomenclature
- Aluminum alloy / POM body
- Interchangeable soft surface wheel
- Horizontal support rollers
- Panoramic HD camera
- 200lm LED lighting
- fixing point
advantage
Performance
Access to areas once inaccessible thanks to its innovative technology and disconcerting ease of use.
-
Wireless control up to 500 meters for free inspection.
Quality
Superior video inspections thanks to the wide-angle Full HD camera and ultra-bright 1000 nits monitor screen.
-
Water resistance up to 2 meters deep (IP68) and robust design in aluminum alloy, stainless steel and POM-C.
Security
Minimization of risks for operators thanks to remote inspections.
-
Improved security of previously inaccessible inspected facilities.
-
Little intrusive, light and not very dangerous, minimizing the consequences on the installations in the event of a fall.
Versatility
Exceptional adaptability with modular wheels to cope with various environments and challenges
Features
Adaptability to surfaces
Thanks to its innovative geometry, the VIR is able to move on concave, convex, back and front surfaces for unlimited visual inspection.
Interchangeable wheels
Its optional magnetic wheels allow it to move to any position imaginable on ferromagnetic surfaces.
Extrême compacité et portabilité
Its extreme compactness allows it to reach difficult-to-access areas. Its small size is also advantageous for transportation and handling purposes.
Pilotage sans fil
Its autonomous operation mode allows it to reach the most narrow places without the issue of a tethered cable getting stuck on obstacles.
Low-latency HD video transmission
The low-latency video transmission system allows you to perform real-time visual inspections and achieve precise robot positioning.
Wide-angle HD camera
Capture high-definition images and videos for optimal visual inspections. A 200 lm LED lighting is provided for inspections in low-light conditions.
Ergonomic control station
The WIFI control station has been designed to facilitate your visual inspections. It allows for controlling the VIR functions, managing and piloting the camera, all through a powerful wireless connection.
Composition of the kit
- VIR robot
- CGS-Y control station
- USB-C cable for charging
- Ground Station Battery
- USB-C Mains Charger
- Transport case
Characteristics
| Technical characteristics | Details |
|---|---|
| Dimensions | L 78 mm / D 68 mm |
| Mass | 225 / 275g depending on version |
| Materials | Aluminum alloy, stainless steel, POM-C |
| Protection | IP68 |
| Autonomy | From 1 to 2 hours depending on conditions of use |
| max distance | 500 m |
| Radio power | 25 mW |
| Frequency | 2,4 / 5,8 GHz |
| Speed | 300 mm/s |
| Registration | Full HD 60fps |
| Transmission | Full HD 60 IPS |
| Tilt | +/- 15° |
| Registration | Internal (USB-C transfer) |
| Charge | USB-C |
| Standard wheels | Moving on a flat surface |
| Magnetic wheels | Circular / vertical displacement |
